研磨拋光機
產品詳情
機床特點：
整機結構件均采用鑄造件；
針對小、微型零件進行設計，設備啟動輕柔，壓力控制準確；
針對研磨、拋光設計的整體護照防止?jié)B漏；
壓力任意調節自動轉換；
定制的尺寸控制系統，準確、可靠；
可選用鑄鐵盤、CBN砂輪及拋光皮進行鏡面研磨拋光；
獨立的過濾系統，保證加工精度及表面光潔度。
設備參數設備型號 | 2MK8440-YP |
研磨盤直徑 | ?400 |
加工直徑上限 | ?120 |
上盤電機功率 | 1.5 |
下盤電機功率 | 1.5 |
內環電機功率 | 0.4 |
系統氣壓（Mpa） | 0.4 |
外形尺寸 | 1050x1000x1500 |
機床重量（約kg） | 1000 |

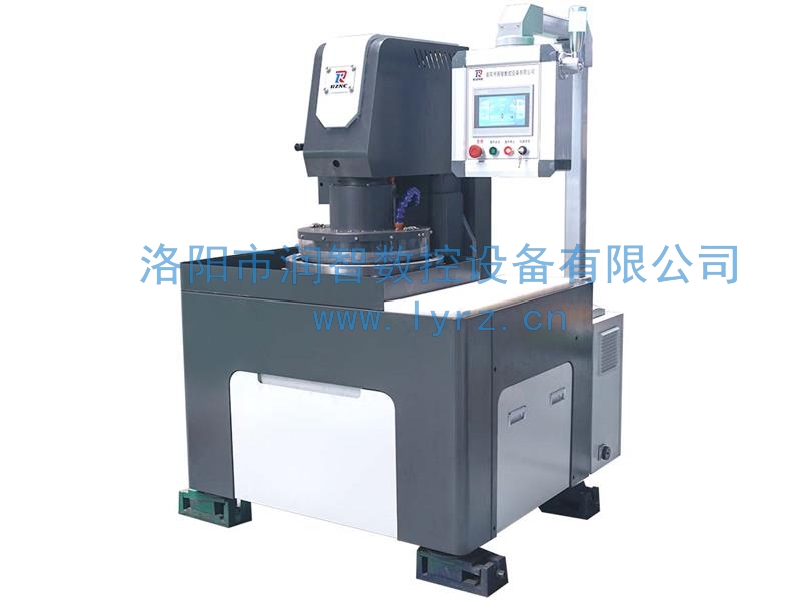

YP series of grinding and polishing machine
Machine tool features:
All structural parts of the whole machine are cast parts.
Designed for small and micro parts, the equipment starts softly and the pressure control is accurate.
Integrated passport designed for grinding and polishing to prevent leakage.
Automatic pressure adjustment.
Unique size control system, accurate and reliable.
Optional mirror grinding and polishing with cast iron disc, CBN wheel and polishing leather.
Independent filtration system ensures machining accuracy and surface finish.
Technical specifications |
Diameter of abrasive disc(mm) |
Maximum machining diameter(mm) |
Motor power of upper plate(kw) |
Motor power of lower plate(kw) |
Motor power of inner ring(kw) |
Maximal pressure(Mpa) |
Outline dimension(mm) |
Machine tool weight(about kg) |
此版權專屬洛陽市潤智數控設備有限公司所有，設備參數及外觀等信息如有變動恕不另行通知。
This copyright is owned by Luoyang Runzhi CNC Equipment Co., LTD parameters and appearance information, such as changes without notice.
